Card Type	Short Range Modem
Chip Set	Unidentified
I/O Options	25-pin serial port (RS-232), network interface via RJ-45, RJ-11 or terminal block
Wiring Type	Unshielded twisted pair
Maximum Data Rate	38.4Kbps
Data Bus	External

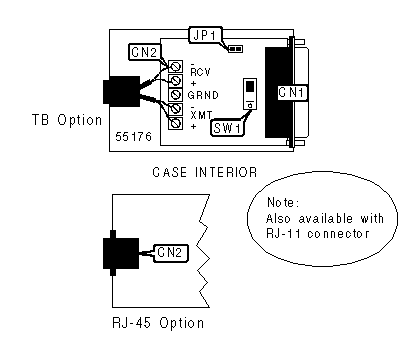

CONNECTIONS
Function		Label		Function		Label
DTE/DCE serial port (25-pin connector)	CN1		UTP interface (RJ-45, RJ-11 or terminal block)		CN2

USER CONFIGURABLE SETTINGS
Setting	Label	Position
DTE mode	SW1	On
DCE mode	SW1	Off

RTS/DCD CONTROL
DCE	DTE	JP1
Carrier forced high	Carrier forced high	Open
Carrier activated by RTS - pin 4	Carrier activated by DCD - pin 8	Closed
