TTC COMPUTER PRODUCTS
VIKOM PRO
|
Modem Type |
Data (Asynchronous)/Fax/Voice |
|
Maximum Data Rate |
2400bps |
|
Maximum Fax Rate |
9600bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
Unidentified |
|

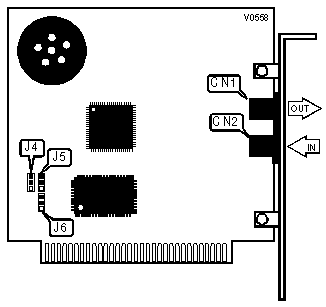

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line out |
CN1 |
Line in |
CN2 |
|
COM PORT SETTINGS | |||
|
COM |
J4 |
J5 |
J6 |
|
í COM2/IRQ3 |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
COM1/IRQ4 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM3/IRQ4 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
COM4/IRQ3 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
