ZOOM TELEPHONICS, INC.
FAXMODEM AFC
|
Modem Type |
Data(Synchronous/Asynchronous)/Fax |
|
Data Rate |
2400bps |
|
Fax Rate |
9600bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Class I |
|
Data Modulation Protocol |
Bell 103A & 212A, CCITT V.22 & V.22bis |
|
Fax Modulation Protocol |
CCITT V.27ter & V.29 |
|
Error Correction/Compression |
V.42, MNP2-4/V.42bis, MNP5 |
|

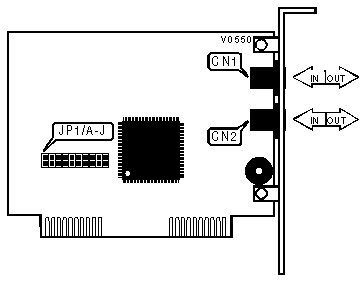

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line in or line out |
CN1 |
Line in or line out |
CN2 |
|
COM PORT SETTINGS | ||||
|
COM/Address |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
|
í COM4/2E8h |
Open |
Closed |
Open |
Closed |
|
COM1/3F8h |
Closed |
Open |
Closed |
Open |
|
COM2/2F8h |
Closed |
Open |
Open |
Closed |
|
COM3/3E8h |
Open |
Closed |
Closed |
Open |
|
INTERRUPT SELECTION | ||||
|
IRQ |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
|
í IRQ3 |
Open |
Closed |
Open |
Open |
|
IRQ2 |
Open |
Open |
Open |
Closed |
|
IRQ4 |
Closed |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Closed |
Open |
|
ZERO WAIT STATE | ||
|
Setting |
JP1/I |
JP1/J |
|
í Enabled |
Closed |
Open |
|
Disabled |
Open |
Closed |
