Card Type	Modem, Fax
Chip Set	Unidentified
I/O Options	Line in (RJ-11), line out (RJ-11), DTE (25-pin serial connector)
Maximum Modem Rate	33.6Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation Protocol	Bell 103A/212A, ITU-T V.21, V.22, V.22bis,V.23, V.32, V.32bis, V.34
Fax Modulation Protocol	V.17, V.21, CH2, V.27ter, V.29, V.33
Error Correction/Compression	MNP5, MNP10, V.42, V.42bis
Fax Class	Class I & II
Data Bus	External

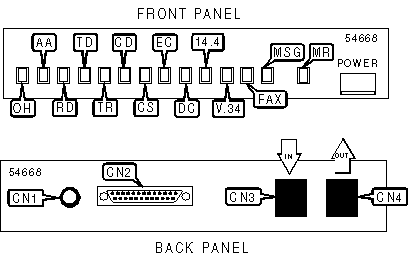

CONNECTIONS
Function	Label		Function		Label
Power jack		CN1		Line in		CN3
DTE connector (25-pin serial connector)		CN2		Line out		CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
OH	Unidentified	On	Modem is off-hook
OH	Unidentified	Off	Modem is on-hook
AA	Unidentified	On	Auto-answer enabled
AA	Unidentified	Off	Auto-answer disabled
AA	Unidentified	Blinking	Phone is ringing
RD	Unidentified	On	Modem is receiving data
RD	Unidentified	Off	Modem is not receiving data
TD	Unidentified	On	Modem is transmitting data
TD	Unidentified	Off	Modem is not transmitting data
TR	Unidentified	On	DTR signal is high
TR	Unidentified	Off	DTR signal is low
CD	Unidentified	On	Carrier signal detected
CD	Unidentified	Off	Carrier signal not detected
CS	Unidentified	On	CTS signal is high
CS	Unidentified	Off	CTS signal is low
EC	Unidentified	On	Error correction enabled
EC	Unidentified	Off	Error correction disabled
DC	Unidentified	On	Data compression enabled
DC	Unidentified	Off	Data compression disabled
14.4	Unidentified	On	Modem connected at 14.4Kbps
14.4	Unidentified	Off	Modem not connected at 14.4Kbps
V.34	Unidentified	On	Modem not connected in V.34 mode
V.34	Unidentified	Off	Modem connected in V.34 mode
FAX	Unidentified	On	Fax connection has been made to remote fax modem
FAX	Unidentified	Off	Fax connection has not been made to remote fax modem
MSG	Unidentified	On	Faxes are waiting
MSG	Unidentified	Off	Faxes are not waiting
MR	Unidentified	On	Power is on
MR	Unidentified	Off	Power is off
MR	Unidentified	Blinking	Modem is in self-test mode

SUPPORTED COMMAND SET

Basic AT Commands

AT, A/

A, B, E, H, M, O, P, Q, T, V, W, Y, Z

&C, &K, &M, &T, &V, &W, &Y, &Z

Extended AT Commands

%C, %L, %Q

\A, \B, \G, \L, \N

)M

*H

-K, -Q

:E

+MS

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S24

S25, S26, S27, S28, S29, S31, S32, S33, S38, S40, S41

Note: See MHI Help File for full command documentation.
