AMERICAN MEGATRENDS, INC.
FAST VIEW VLB
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
W5186 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2048KB |
|

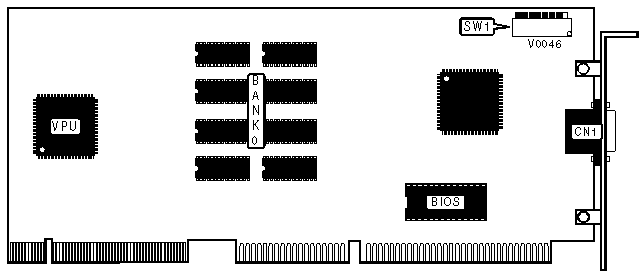

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
DATA BUS WIDTH SELECTION | ||||
|
Setting |
SW1/1 |
SW1/4 |
SW1/5 | |
| » |
16-bits wide |
Off |
On |
On |
|
8-bits wide |
On |
Off |
Off | |
|
INTERRUPT SELECTION | ||
|
IRQ 2/9 |
SW1/2 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
ZERO WAIT STATE SELECTION | ||
|
Setting |
SW1/3 | |
| » |
Enabled |
On |
|
Disabled |
Off | |
|
MEMORY BASE ADDRESS SELECTION | |||
|
Address |
SW1/6 |
SW1/7 | |
| » |
C000h |
On |
On |
|
D000h |
On |
Off | |
|
E000h |
Off |
On | |
|
F000h |
Off |
Off | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Switch |
Position |
|
SW1/8 |
On |
