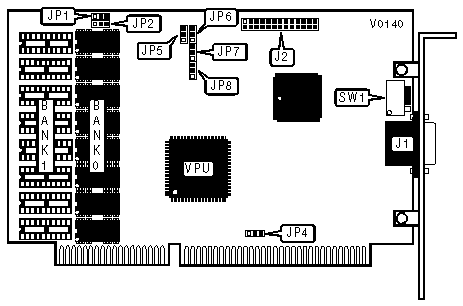

ACTIX SYSTEMS, INC.
GRAPHICS ENGINE 32/32 PLUS
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 86C801 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
J1 |
VGA feature connector |
J2 |
|
INTERRUPT CONFIGURATION | ||
|
IRQ 2/9 |
JP4 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
MONITOR TYPE SELECTION | |||||
|
Type |
Resolution |
Refresh |
SW1/1 |
SW1/2 | |
| » |
VGA, Super VGA |
1024 x 768 |
43.5Hz |
Off |
Off |
|
VGA, Super VGA |
1280 x 1024 |
N/A |
Off |
Off | |
|
Multisync, 38KHz |
1024 x 768 |
43.5Hz |
Off |
On | |
|
Multisync, 48KHz |
1024 x 768 |
60Hz |
On |
Off | |
|
Multisync, 57KHz |
1024 x 768 |
72Hz |
On |
On | |
|
Multisync, 48KHz |
1280 x 1024 |
N/A |
Off |
On | |
|
Multisync, 57KHz |
1280 x 1024 |
43.5Hz |
On |
Off | |
|
Multisync, 64KHz |
1280 x 1024 |
60Hz |
On |
On | |
|
Note: 1280 x 1024 resolution is only available on the Graphics Engine 32plus. | |||||
|
TURBO MODE CONFIGURATION | ||
|
Setting |
SW1/3 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
BUS WIDTH SELECTION | ||
|
Setting |
SW1/4 | |
| » |
8-bit |
On |
|
16-bit |
Off | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Jumper |
Position |
|
JP2 |
Pins 1 & 2 closed |
|
JP5 |
Pins 1 & 2 closed |
|
JP6 |
Pins 1 & 2 closed |
|
JP7 |
Pins 1 & 2 closed |
|
JP8 |
Pins 1 & 2 closed |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
JP1 |
|
1MB |
(8) 44256 |
None |
Pins 1 & 2 closed |
|
2MB |
(8) 44256 |
(8) 44256 |
Pins 2 & 3 closed |
