ACTIX SYSTEMS, INC.
GRAPHICS ENGINE 32PLUS/2MB
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 86C801 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2048KB |
|

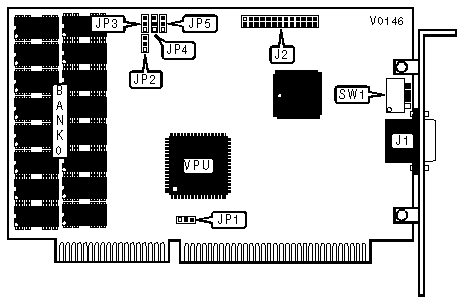

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
J1 |
VESA Feature connector |
J2 |
|
INTERRUPT CONFIGURATION | ||
|
IRQ 2/9 |
JP1 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
MONITOR TYPE SELECTION | ||||
|
Type |
Refresh/1280 x 1024 |
SW1/1 |
SW1/2 | |
| » |
VGA, Super VGA |
N/A |
Off |
Off |
|
Multisync, 48KHz |
N/A |
Off |
On | |
|
Multisync, 57KHz |
43.5Hz |
On |
Off | |
|
Multisync, 64KHz |
60Hz |
On |
On | |
|
TURBO MODE CONFIGURATION | ||
|
Setting |
SW1/3 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
BUS WIDTH SELECTION | ||
|
Setting |
SW1/4 | |
| » |
8-bit |
On |
|
16-bit |
Off | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Jumper |
Position |
|
JP2 |
Pins 1 & 2 closed |
|
JP3 |
Pins 1 & 2 closed |
|
JP4 |
Pins 1 & 2 closed |
|
JP5 |
Pins 1 & 2 closed |
