ASKA TECHNOLOGIES
ASKA-8133
|
Category |
Video |
|
Video Types Supported |
Monochrome |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|

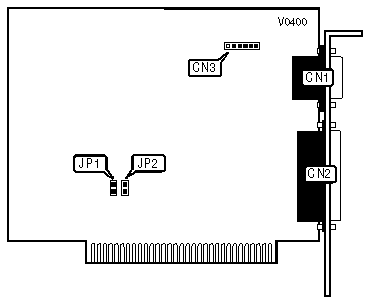

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Light pen connector |
CN3 |
|
Parallel port |
CN2 | ||
|
ROM CONFIGURATION | ||
|
Setting |
JP1 | |
| » |
Enabled |
Open |
|
Disabled |
Closed | |
|
PARALLEL PORT CONFIGURATION | ||
|
Setting |
JP2 | |
| » |
Enabled |
Open |
|
Disabled |
Closed | |
