Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	720 x 348
Maximum Video Memory	None
Data Bus	8-bit ISA
Video Types Supported	MDA, CGA

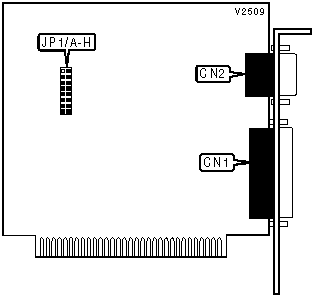

CONNECTIONS
Function	Label	Function	Label
Parallel port	CN1	Video port	CN2

DISPLAY CONFIGURATION
Display	JP1/A	JP1/B
Color	Closed	Open
Monochrome	Open	Closed

PARALLEL PORT CONFIGURATION
Selection	JP1/C	JP1/D	JP1/E
LPT1 (3BCh)	Open	Closed	Open
LPT2 (378h)	Closed	Open	Open
Disabled	Open	Open	Closed

MISCELLANEOUS TECHNICAL NOTES

Note: The purpose of JP1/F, JP1/G and JP1/H is unidentified.
