Card Type	Video/Audio card
Video Chip Set	ATI Technologies, Inc.
Audio Chip Set	Creative Labs
Maximum Video Memory	2MB EDO DRAM
Video Types Supported	XVGA
Highest Resolution Supported	1280x1024
I/O Options	Game port, VGA port, microphone in, wavetable connector, PC speaker in/out, Audio in - CD-ROM (3), line in, line out, AMC connector, volume control
Data Bus	Media Bus

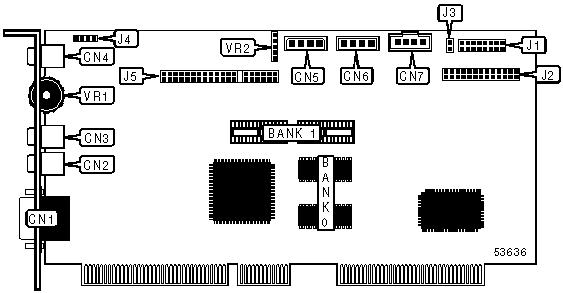

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Game port	J1
Line in	CN2	Wavetable connector	J2
Microphone in	CN3	PC speaker in	J3
Speaker out	CN4	PC speaker out	J4
Audio in - CD-ROM (Sony)	CN5	Proprietary connector (AMC)	J5
Audio in -CD-ROM (Panasonic)	CN6	Volume control	VR1
Audio in -CD-ROM (Mitsumi)	CN7	Digital volume control	VR2

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
1MB	(2) 256KB x 16	None
2MB	(2) 256KB x 16	(2) 256KB x 16
