Card Type	Video card
Video Chip Set	Texas Instruments
Maximum Video Memory	1MB VRAM,512K DRAM
Video Types Supported	VGA
Highest Resolution Supported	1024 x 768,
Data Bus	16-bit ISA

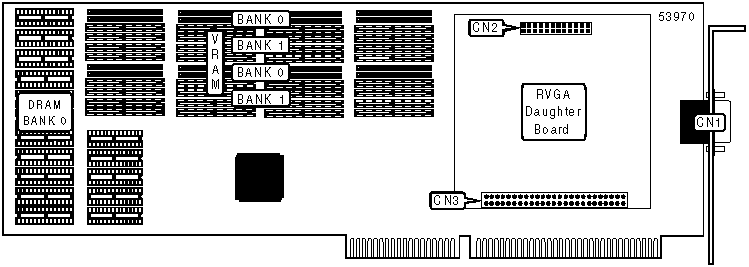

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	RVGA daughterboard connector	CN3
Pass-through connector	CN2

DRAM CONFIGURATION
Size	Bank 0
0KB	None
512KB	(16) 32KB

VIDEO MEMORY CONFIGURATION (VRAM)
Size	Bank 0	Bank 1
512KB	(16) 32KB	None
1MB	(16) 32KB	(16) 32KB
