ADVANCED LOGIC RESEARCH, INC.
EGA CARD
|
Card Type |
Video card |
|
Video Types Supported |
Monochrome, EGA |
|
Highest Resolution Supported |
640 x 350 |
|
Data Bus |
8-bit ISA |
|

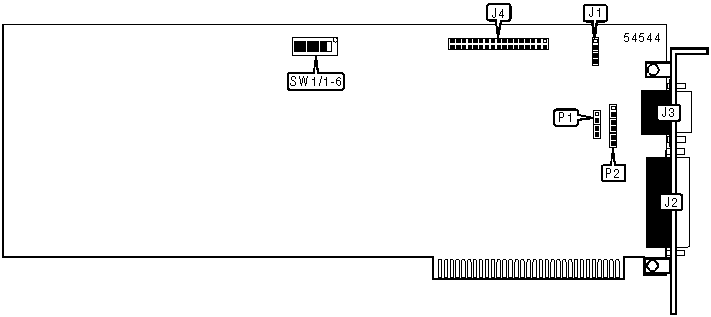

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Parallel port |
J2 |
6-pin light pen port |
P2 |
|
9-pin digital video port |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
J1 |
unidentified |
| » |
Factory configured - do not alter |
J4 |
unidentified |
| » |
Parallel port enabled |
SW1/5 |
Off |
|
Parallel port disabled |
SW1/5 |
On | |
|
DISPLAY CONFIGURATION | ||||
|
Description |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
RGB |
Off |
Off |
Off |
On |
|
Enhanced Color |
Off |
On |
On |
Off |
|
Monochrome |
Off |
Off |
On |
Off |
