ASUS COMPUTER INTERNATIONAL
AGP-V1326
|
Card Type |
DVD Video accelerator card |
|
Video Chip Set |
SIS |
|
Maximum Video Memory |
4MB SGRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
AGP |
|

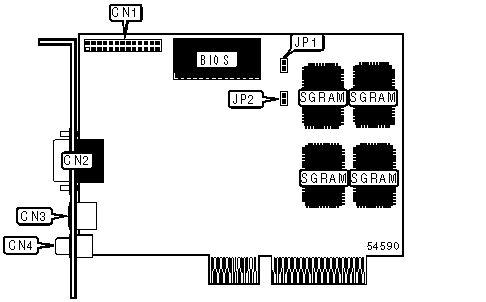

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Video feature connector |
CN1 |
SVHS/TV output port |
CN3 |
|
Video port |
CN2 |
Composite/TV (RCA) output port |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
PAL standard |
JP1 |
Closed |
|
NTSC standard |
JP1 |
Open | |
| » |
INTA enabled |
JP2 |
Closed |
|
INTA disabled |
JP2 |
Open | |
