Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	4MB EDO DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

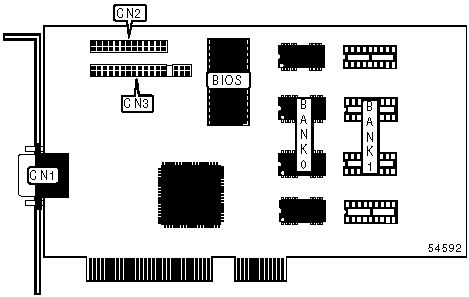

CONNECTIONS
Function	Label	Function	Label
Video port	CN1	16-bit LPB connector	CN3
8-bit LPB & feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(4) 256KB x 16	None
4MB	(4) 256KB x 16	(4) 256KB x 16
