ASUS COMPUTER INTERNATIONAL
AGP-V3400TNT/TV/16MB
|
Card Type |
Video card |
|
Video Chip Set |
NVIDIA RIVA TNT |
|
Maximum Video Memory |
16MB |
|
Video Types Supported |
Unidentified |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
AGP |
|

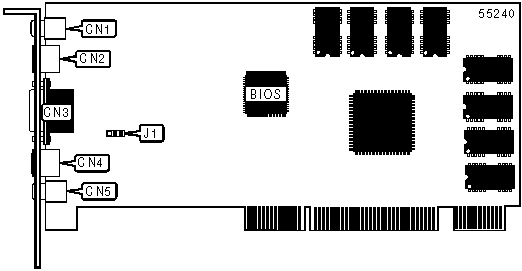

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Composite (RCA) in |
CN1 |
S - video out |
CN4 |
|
S - video in |
CN2 |
Composite (RCA) out |
CN5 |
|
Video out |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
NTSC |
J1 |
Pins 2 & 3 closed |
|
PAL |
J1 |
Pins 1 & 2 closed | |
