DIAMOND FLOWER, INC.
VG-2000
|
Category |
Video |
|
Video Types Supported |
Monochrome/XVGA |
|
Video Processor |
8900C |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

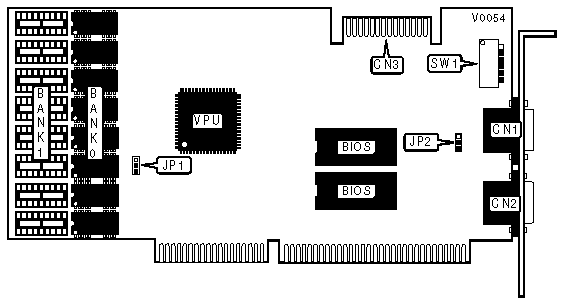

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
9-pin analog video port |
CN1 |
VGA feature connector |
CN3 |
|
15-pin analog video port |
CN2 | ||
|
BIOS BUS TRANSFER SELECTION | ||
|
Mode |
JP1 | |
| » |
8-bit |
Pins 1 & 2 closed |
|
Autosense |
Pins 2 & 3 closed | |
|
VIDEO DISPLAY SELECTION | ||
|
Setting |
JP2 | |
| » |
Color display for Multisync TTL or analog monitors |
Pins 2 & 3 closed |
|
Monochrome display for Multisync TTL monitors |
Pins 1 & 2 closed | |
|
DISPLAY TYPE SELECTION | |||||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
| » |
PS/2 or Multisync |
On |
On |
On |
On |
On |
On |
|
Multisync digital |
Off |
Off |
Off |
Off |
Off |
Off | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(8) 256K x 1 |
None |
|
512KB |
(8) 256K x 1 |
(8) 256K x 1 |
