DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH 24 (REV. B2)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 86C801/86C805 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|

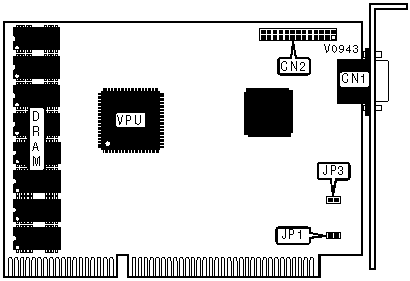

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT CONFIGURATION | ||
|
IRQ 2 |
JP1 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
WAIT STATE CONFIGURATION | ||
|
Setting |
JP3 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
