Card Type	Video card
Video Chip Set	Tseng Labs - ET4000
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB RAM (type unidentified)
Data Bus	32-bit VESA Local Bus
Video Types Supported	XVGA

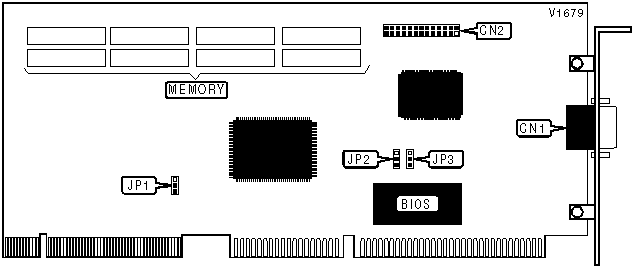

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ2 disabled	JP1	Pins 2 & 3 closed
	IRQ2 enabled	JP1	Pins 1 & 2 closed

VIDEO MEMORY CONFIGURATION

Note: The size and configuration of the RAM is unavailable.

WAIT STATE SELECTION
Wait state		JP2	JP3
	1	Pins 1 & 2 closed	Pins 1 & 2 closed
»	2	Pins 2 & 3 closed	Pins 1 & 2 closed
	3	Pins 1 & 2 closed	Pins 2 & 3 closed
	4	Pins 2 & 3 closed	Pins 2 & 3 closed
