Category	Video
Video Types Supported	XVGA
Video Processor	Texas Instruments
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM/VRAM
Maximum Onboard Memory	512KB/1MB

CONNECTIONS

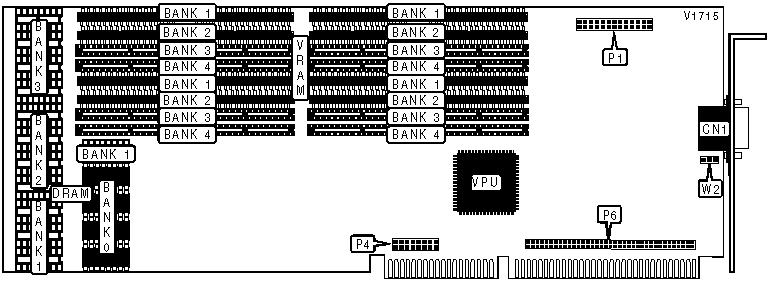

Purpose	Location	Purpose	Location
15-pin analog video port	CN1	16-pin connector (Factory use only)	P4
Daughter board or VGA feature connector	P1	Daughter board connector	P6

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
128KB	(4) 64K x 4	NONE	NONE	NONE
256KB	(4) 64K x 4	(4) 64K x 4	NONE	NONE
384KB	(4) 64K x 4	(4) 64K x 4	(4) 64K x 4	NONE
512KB	(4) 64K x 4	(4) 64K x 4	(4) 64K x 4	(4) 64K x 4

VRAM CONFIGURATION
Size	Bank 1	Bank 2	Bank 3	Bank 4
512KB	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP	NONE	NONE
768KB	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP	NONE
1MB	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP	(8) 64K x 4 ZIP

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
W2	Unidentified

CONNECTIONS
Purpose	Location	Purpose	Location
Daughter board or VGA feature connector	P1	Daughter board connector	P6
