Card Type	Video encoder
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	Unidentified
Highest Resolution Supported	Unidentified
I/O Options	S-video in/out
Data Bus	16-bit ISA

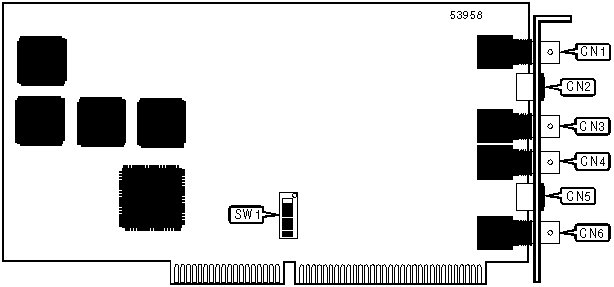

CONNECTIONS
Function	Label	Function	Label
Prompts & cursor out	CN1	Key out	CN4
S-video out	CN2	S-video in	CN5
Program out	CN3	Program in	CN6

ADDRESS SELECTION
Setting	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
1A8	On	Off	On	Off	Off	On
1E8	On	Off	Off	Off	Off	On
