Card Type	Video card
Video Chip Set	Avance
Maximum Video Memory	2MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

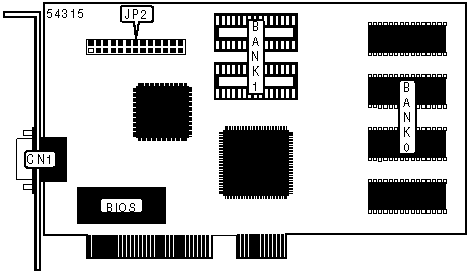

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	JP2

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
1MB	(4) 256KB x 16	None
2MB	(4) 256KB x 16	(2) 512KB x 16
