DOOIN ELECTRONICS
MEDIACAMP V PLUS
|
Card Type |
Video card/TV Tuner card |
|
Video Chip Set |
Trident |
|
Maximum Video Memory |
4MB EDO DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

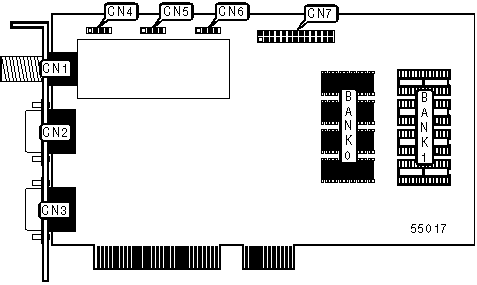

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Antenna in |
CN1 |
VMI in |
CN5 |
|
A/V port |
CN2 |
Line out |
CN6 |
|
VGA port |
CN3 |
DVD board interface |
CN7 |
|
VMI in |
CN4 | ||
|
VIDEO MEMORY CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 | |
| » |
2MB |
(4) 512KB |
None |
|
4MB |
(4) 512KB |
(4) 512KB | |
