Category	Video
Video Types Supported	XVGA
Video Processor	ET4000
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	2048KB

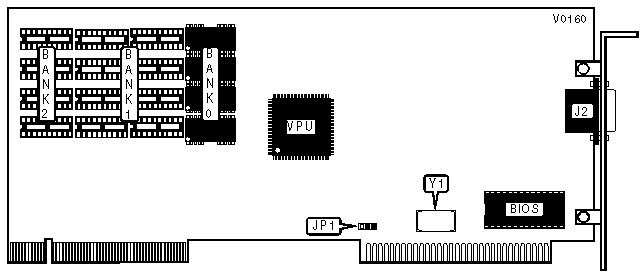

CONNECTIONS
Purpose	Location
15-pin video analog port	J2

ATCLK SIGNAL SELECT
ATCLK		JP1
»	Signal from ISA Bus	Pins 1 & 2 closed
	Signal from Y1	Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
512KB	(4) 44256	None	None
1024KB	(4) 44256	(8) 44256	None
2048KB	(4) 44256	(8) 44256	(4) 44256
