Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	800 x 600
Maximum Video Memory	DRAM
Data Bus	8-bit ISA/16-bit ISA
Video Types Supported	VGA

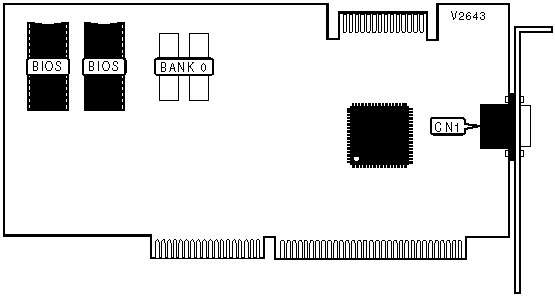

CONNECTIONS
Function	Label
15-pin analog video port	CN1

DRAM CONFIGURATION

Note: The DRAM chip size and configuration is unidentified.
