HAUPPAUGE COMPUTER WORKS, INC.
WIN/TV-CINEMAPRO
|
Category |
Video |
|
Video Types Supported |
VGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1024 X 768 |
|
Data Bus Type |
16-bit ISA |
|

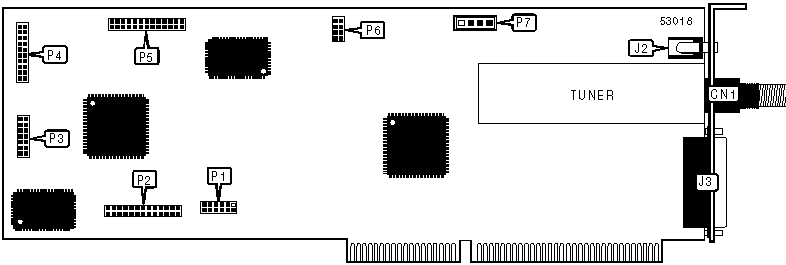

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
RF-in 75 ohm coax |
CN1 |
Unidentified |
P3 |
|
Audio out |
J2 |
Unidentified |
P4 |
|
26-pin video loop cable |
J3 |
Unidentified |
P5 |
|
Unidentified |
P1 |
MPEG decoder connector - optional |
P6 |
|
Unidentified |
P2 |
Line out - audio |
P7 |
