Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	256KB
Video Types Supported	Monochrome, CGA, EGA, VGA
Highest Resolution Supported	800 x 600
Data Bus	8-bit ISA

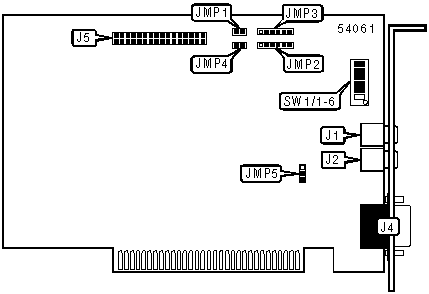

CONNECTIONS
Function	Label	Function	Label
Composite video	J1	Feature connector	J5
Composite video	J2	Light pen connector	JMP3
9-pin digital video port	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	NMI enabled	JMP4	Open
	NMI disabled	JMP4	Closed
»	Multifrequency or EGA display	JMP5	Pins 1 & 2 closed
	IBM 5153 color display	JMP5	Pins 2 & 3 closed

VIDEO MEMORY JUMPER CONFIGURATION
Size		JMP2
»	256KB	Pins 2 & 3, 5 & 6 closed
	128KB	Pins 1 & 2, 4 & 5 closed

MONITER CONFIGURATION SELECTION
SW1/1	SW1/2	SW1/3	SW1/4	Enhanced	Monochrome	Color/Graphics
On	Off	Off	On	Color 40 x 25	Secondary	Disabled
Off	Off	Off	On	Color 80 x 25	Secondary	Disabled
On	On	On	Off	Color 640 x 200	Secondary	Disabled
Off	On	On	Off	Enhanced 640 x 350	Secondary	Disabled
On	Off	On	Off	Monochrome	Disabled	Secondary 320 x 200
Off	Off	On	Off	Monochrome	Disabled	Secondary 640 x 200
On	On	Off	Off	Multifrequency	Secondary	Disabled
On	On	On	On	Color 320 x 200	Primary	Disabled
Off	On	On	On	Color 640 x 200	Primary	Disabled
On	Off	On	On	Color 640 x 200	Primary	Disabled
Off	Off	On	On	Enhanced 640 x 350	Primary	Disabled
On	On	Off	On	Monochrome	Disabled	Primary 40 x 25
Off	On	Off	On	Monochrome	Disabled	Primary 80 x 25

MONITOR COMPATIBILITY SELECTION
Setting	SW1/5	SW1/6
EGA mode	On	On
CGA mode	Off	On
MDA & Hercules mode	Off	Off
Automatic display mode selection	On	Off

BASE I/O ADDRESS SELECTION
Address		JMP1
»	3xxh	Open
	2xxh	Closed
