Category	Video
Video Types Supported	XVGA
Video Processor	8900C
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

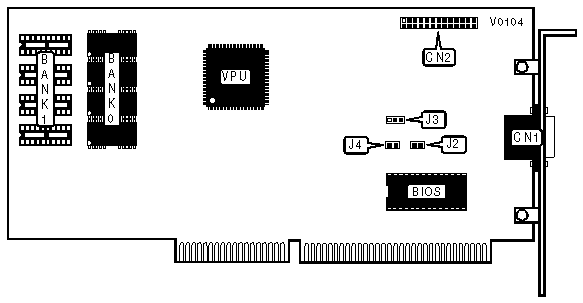

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

SCAN RATE SELECTION
Rate		J2
»	Default scan rate	Closed
	48.7Khz	Open

BUS SIZE DETECT CONFIGURATION
Setting		J4
»	Autodetect	Open
	Standard interface	Closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
J3	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 41256	None
512KB	(2) 41256	(2) 41256
