Card Type	Video & Audio card
Video Chip Set	SGS-Thomson STG 2000
Highest Resolution Supported	1600 x 1200
Maximum Video Memory	2MB DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

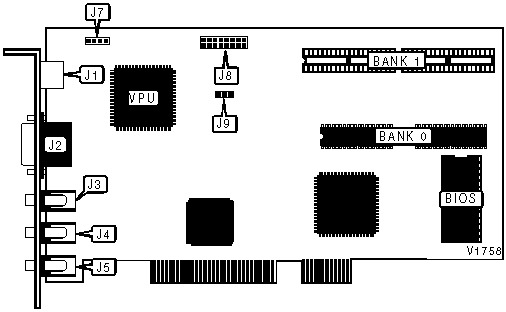

CONNECTIONS
Function	Label	Function	Label
IBM game port	J1	Audio line in	J5
15-pin analog video port	J2	CD - audio	J7
Mic in	J3	Sega Digital game port	J8
Audio line out	J4

USER CONFIGURABLE SETTINGS
Function	Label	Position
Jumper/Connector - information unavailable	J9	Unidentified

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 16	None
2MB	(2) 256K x 16	(2) 256K x 16
