L & K MICRO SUPPLY, INC.
DESKTOP TV
|
Card Type |
Video capture board/Tuner card |
|
Video Chip Set |
None |
|
Highest Resolution Supported |
Unidentified |
|
Maximum Video Memory |
None |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
VGA |
|

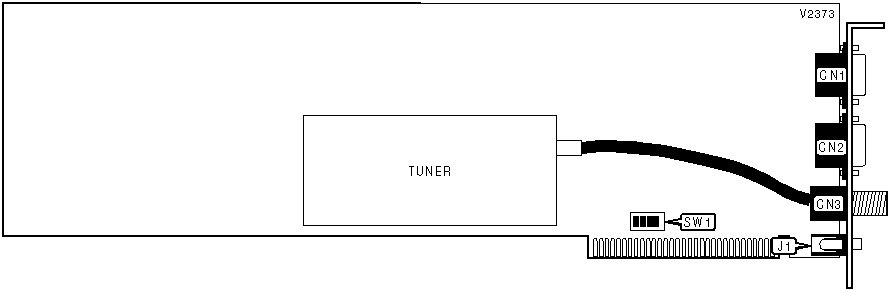

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Video out |
CN1 |
TV in |
CN3 |
|
Video in |
CN2 |
Audio out |
J1 |
|
I/O ADDRESS SELECTION | |||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 | |
|
110h |
On |
Off |
Off |
Off | |
|
250h |
Off |
On |
Off |
Off | |
|
260h |
On |
On |
Off |
Off | |
|
280h |
Off |
Off |
On |
Off | |
|
290h |
On |
Off |
On |
Off | |
|
2A0h |
Off |
On |
On |
Off | |
| » |
350h |
Off |
Off |
Off |
Off |
