Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	Unidentified
Data Bus	16-bit ISA
Video Types Supported	XVGA

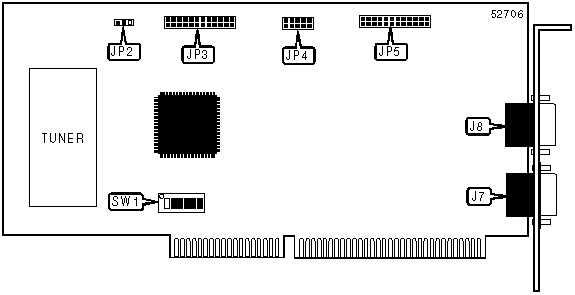

CONNECTIONS
Function	Label	Function	Label
15-pin Analog Video Port	J7	Tuner video connector	JP4
Video in/SVHS in from VGA	J8	Auxiliary Connector	JP5
Feature connector	JP3

USER CONFIGURABLE SETTINGS
Function	Label	Position
Base I/O address at B18	JP2	Pins 1 & 2 closed
Base I/O address at B28	JP2	Pins 2 & 3 closed

MODE CONFIGURATION
Mode	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
Software as Linear or Page	Off	Off	Off	Off	Off	On
Hardware as Linear	On	Off	Off	On	On	Off
Hardware as Page	Off	On	On	Off	Off	Off
