Card Type	Video capture card
Video Chip Set	Unidentified
Maximum Video Memory	None
Video Types Supported	Monochrome, VGA
Highest Resolution Supported	Unidentified
Formats Supported	Monochrome images from CCIR, RS170
Data Bus	32-bit PCI

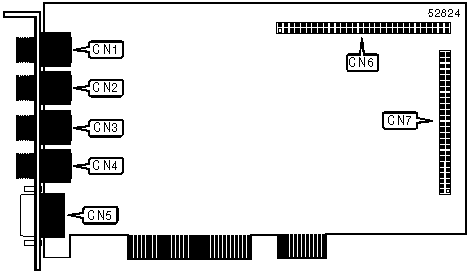

CONNECTIONS
Function	Label	Function	Label
12-pin hirose - video in 3	CN1	15-pin connector - universal camera	CN5
12-pin hirose - video in 2	CN2	60-pin connector - proprietary pixelbus	CN6
12-pin hirose - video in 1	CN3	50-pin connector - proprietary commandbus	CN7
12-pin hirose - video in 0	CN4
