Card Type	Video card
Video Chip Set	3Dlabs Inc. Ltd.
Maximum Video Memory	8MB SGRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

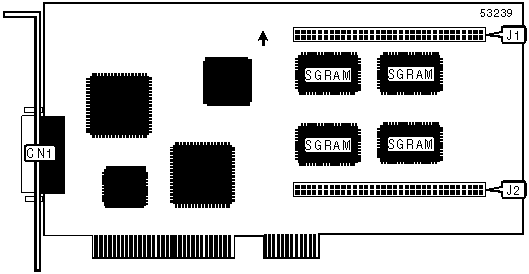

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Header connector	J2
Header connector	J1

MEMORY CONFIGURATION
Size
4MB	No daughter card
8MB	Daughter card installed

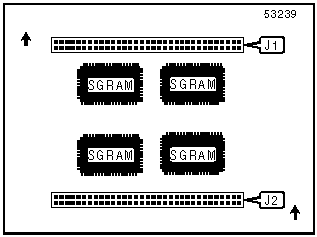

CONNECTIONS
Function	Label	Function	Label
Header connector	J1	Header connector	J2
