Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	4MB VRAM
Video Types Supported	Monochrome, CGA, VGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

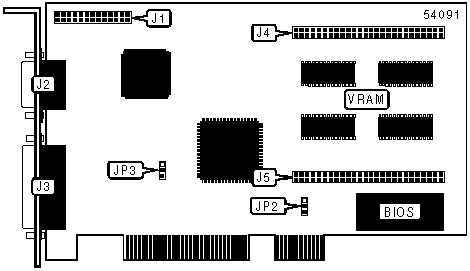

CONNECTIONS
Function	Label	Function	Label
Feature connector	J1	Header for memory upgrade	J4
15-pin analog video port	J2	Header for memory upgrade	J5
13W3 analog video port	J3

MONITOR CONFIGURATION SELECTION
Setting	JP2	JP3
Separate sync	Pins 1 & 2 closed	Pins 1 & 2 closed
Sync on green	Pins 2 & 3 closed	Pins 2 & 3 closed
Composite sync	Pins 2 & 3 closed	Pins 1 & 2 closed

CONNECTIONS
Function	Label	Function	Label
Header to main board	J1	Header to main board	J2
