Card Type	Video Card
Video Chip Set	Macronix
Maximum Video Memory	2MB EDO DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32 bit PCI

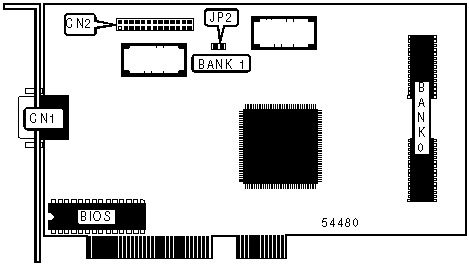

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
Fast Page DRAM selection	JP2	Closed
EDO DRAM selection	JP2	Open

VIDEO MEMORY CONFIGURATION (EDO DRAM)
Size	Bank0	Bank1
1MB	256KB x 16	None
2MB	256KB x 16	256KB x 16
