JOYTECH COMPUTER CO., LTD.
VIDEO 5446
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

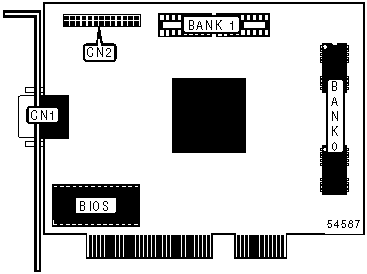

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Video port |
CN1 |
Video feature connector |
CN2 |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
BANK 0 |
BANK 1 |
|
1MB |
(2) 512KB x 9 |
None |
|
2MB |
(2) 512KB x 9 |
(2) 512KB x 9 |
