Category	Video
Video Types Supported	XVGA
Video Processor	Tseng Labs
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit Local VESA Bus
Memory Type	DRAM
Maximum Onboard Memory	1024KB

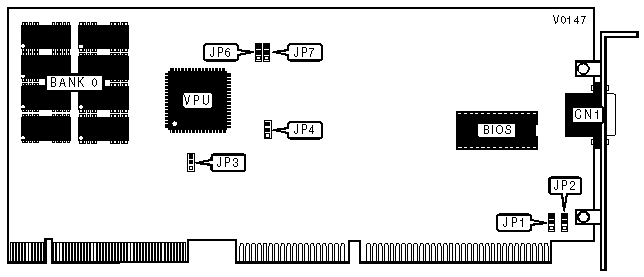

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

VIDEO INTERRUPT CONFIGURATION
IRQ 2/9		JP2
»	Disabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP1	Pins 2 & 3 closed
JP3	Pins 1 & 2 closed
JP4	Pins 1 & 2 closed
JP6	Pins 2 & 3 closed
JP7	Pins 1 & 2 closed
