MONOLITHIC SYSTEMS, INC. (COLORADO MSI)
UltraVGA 453
|
Category |
Video |
|
Video Type |
XVGA |
|
Video Processor |
Chips & Technologies |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
1MB |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|

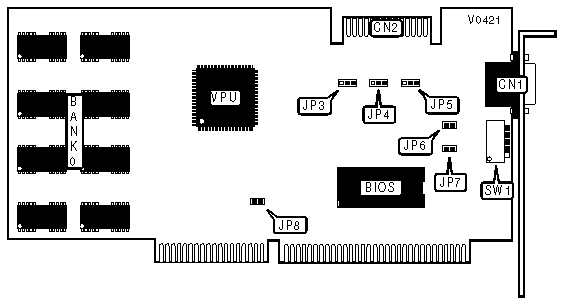

15-pin analog video port |
CN1 |
VGA Feature connector |
CN2 |
|
VIDEO CLOCK SOURCE |
||
|
Mode |
JP3 |
|
|
» |
Onboard clock |
Pins 1 & 2 closed |
|
|
VGA feature connector used |
Pins 2 & 3 closed |
|
FACTORY CONFIGURED SETTINGS |
|
|
Jumper |
Setting |
|
JP4 |
Pins 1 & 2 closed |
|
JP5 |
Pins 2 & 3 closed |
|
JP6 |
Open |
|
JP7 |
Open |
|
SW1/1 |
Off |
|
SW1/2 |
Off |
|
SW1/4 |
Off |
|
SW1/5 |
Off |
|
INTERRUPT SELECTION |
||
|
Setting |
JP8 |
|
|
» |
IRQ9 enabled |
Closed |
|
|
IRQ9 disabled |
Open |
|
INTERLACED MODE |
|
|
Setting |
SW1/3 |
|
Non-interlaced mode |
On |
|
Interlaced mode |
Off |
