Category	Video
Video Types Supported	XVGA
Video Processor	S3
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

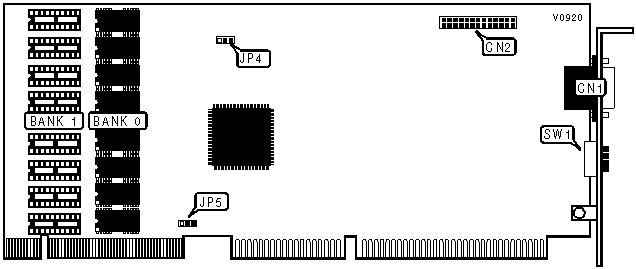

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

MONITOR TYPE SELECTION
Type	SW1/1	SW1/2	SW1/3	SW1/4
35KHz Multi-frequency	On	On	On	Off
48KHz Multi-frequency	Off	Off	On	Off
58KHz Multi-frequency	On	Off	Off	Off
64KHz Multi-frequency	Off	Off	Off	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(8) 256K x 4	NONE
2MB	(8) 256K x 4	(8) 256K x 4

DRAM JUMPER CONFIGURATION
Size	JP4
1MB	Pins 2 & 3 closed
2MB	Pins 1 & 2 closed

VESA CLOCK SPEED SELECTION
Speed	JP5
>33MHz	Pins 1 & 2 closed
<=33MHz	Pins 2 & 3 closed
