Category	Video
Video Types Supported	XVGA
Video Processor	TVGA9000
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

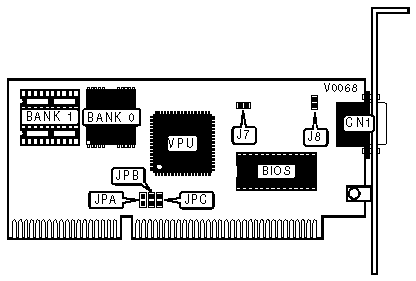

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

SCAN RATE SELECTION
Rate		J7
»	800 x 600	Closed
	1024 x 768	Open

BUS WIDTH AUTODETECT CONFIGURATION
Autodetect		J8
»	Enabled	Open
	Disabled	Closed

BUS SELECTION
Bus		J9/A	J9/B	J9/C
»	16-bit	Open	Open	Open
	8-bit	Closed	Closed	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 44256	None
512KB	(2) 44256	(2) 44256
