Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local-bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

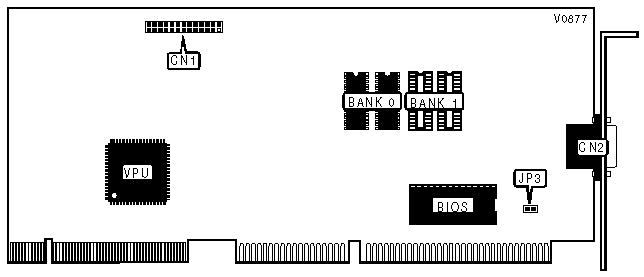

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	CN1	15-pin analog video port	CN2

IRQ9
Setting		JP3
»	Disabled	Open
	Enabled	Closed

DRAM CONFIGURATION
Size		Bank 0	Bank 1
»	1MB	(2) 512K x 8	None
	2MB	(2) 512K x 8	(2) 512K x 8
