Card Type	Video card
Video Chip Set	Trident
Maximum Video Memory	1MB
Video Types Supported	VGA
Highest Resolution Supported	1024 x 768
Data Bus	16-bit ISA

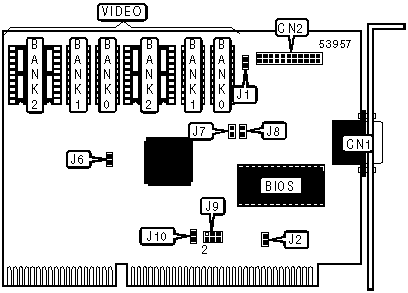

CONNECTIONS
Function	Label	Function	Label
15-pin video analog video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Second stage 0 wait state enabled	J1	Open
	Second stage 0 wait state disabled	J1	Closed
»	First stage 0 wait state enabled	J2	Closed
	First stage 0 wait state disabled	J2	Open
»	BIOS auto detect enabled	J8	Open
	BIOS auto detect disabled	J8	Closed

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
256KB	(2) 256K x 4	None	None
512KB	(2) 256K x 4	(2) 256K x 4	None
1MB	(2) 256K x 4	(2) 256K x 4	(4) 256K x 4

VIDEO INTERLACE CONFIGURATION
Interlace		J7
»	Enabled	Closed
	Disabled	Open

SLOT SELECTION
Setting		J6	J9	J10
»	Card installed in 16-bit slot	Open	Open	Closed
	Card installed in 8-bit slot	Closed	1 & 2, 3 & 4, 5 & 6	Open
Note: Pins designated should be in the closed position.
