STB SYSTEMS, INC.
VGA 640
|
Category |
Video |
|
Video Types Supported |
VGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
640 x 480 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

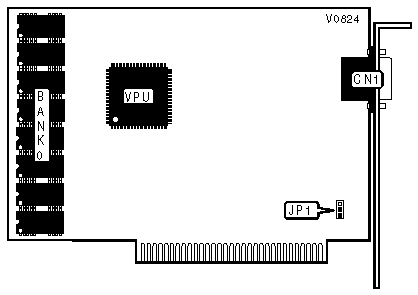

CONNECTIONS |
|
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
IRQ2 |
||
|
Setting |
JP1 |
|
|
» |
Disabled |
Pins 2 & 3 closed |
|
|
Enabled |
Pins 1 & 2 closed |
