STB SYSTEMS, INC.
LIGHTSPEED PCI (REV. A)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|

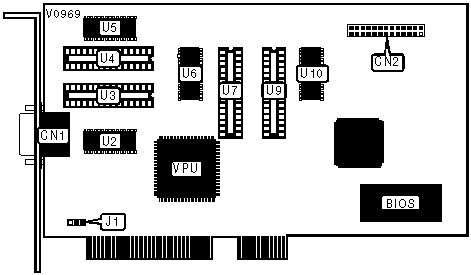

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT SELECTION | |
|
IRQ 2 |
J1 |
|
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 (U2 & U5, U6 & U10) |
Bank 1 (U3 & U4, U7 & U9) |
|
1MB |
(4) 256K x 8 |
NONE |
|
2MB |
(4) 256K x 8 |
(4) 256K x 8 |
