Category

Video

Video Types Supported

XVGA

Video Processor

Trident

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit PCI

Memory Type

DRAM

Maximum Onboard Memory

2MB

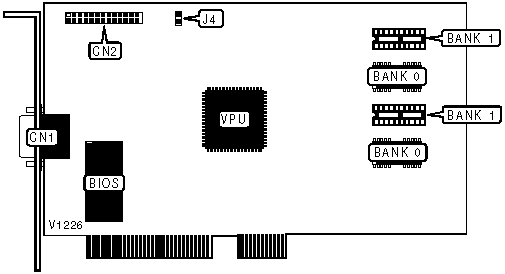

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

SCAN RATE CONFIGURATION

Rate

J4

»

Interlaced ( < 48.7 KHz)

Closed

Non-interlaced ( ³ 48.7 KHz)

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 1024K x 4

None

2MB

(2) 1024K x 4

(2) 1024K x 4
