Card Type	Video card
Video Chip Set	S3 Trio64V+
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

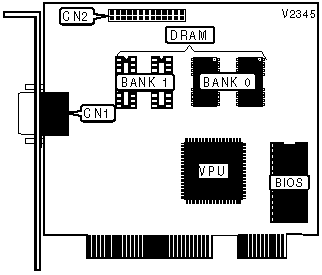

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	VESA feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2)256KB x 16 or (2) 512KB x 8	None
2MB	(2)256KB x 16 or (2) 512KB x 8	(2)256KB x 16
