SEANIX TECHNOLOGIES, INC.
MPEVGA-PRO 3D
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
4MB DRAM |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

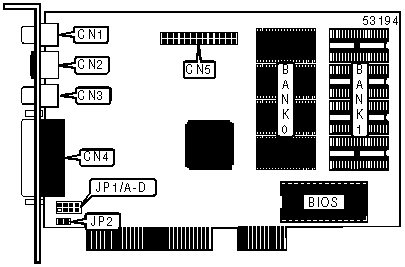

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Video in |
CN1 |
15-pin analog video port |
CN4 |
|
S-Video out |
CN2 |
Feature connector |
CN5 |
|
Video out |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Video out underscan |
JP1/C |
Open |
|
Video out overscan |
JP1/C |
Closed | |
| » |
Video out NTSC |
JP1/D |
Open |
|
Video out PAL |
JP1/D |
Closed | |
| » |
IRQ enabled |
JP2 |
Closed |
|
IRQ disabled |
JP2 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(4) 512KB |
None |
|
4MB |
(4) 512KB |
(4) 512KB |
|
VIDEO OUT FILTER MODES | |||
|
Mode |
JP1/A |
JP1/B | |
| » |
1:1:0 Averaging |
Open |
Open |
|
1:3:1 Averaging |
Open |
Closed | |
|
1:2:1 Averaging |
Closed |
Open | |
|
0:1:0 Averaging |
Closed |
Closed | |
