SYSDYNE
CMP 400
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
Monochrome, CGA |
|
Highest Resolution Supported |
640 x 400 |
|
Data Bus |
8-bit ISA |
|

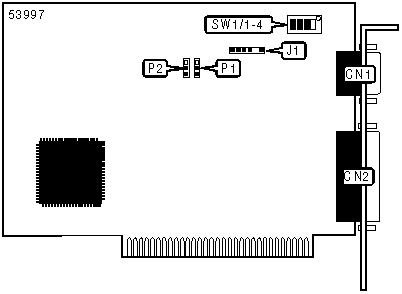

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin serial port |
CN1 |
Light pen connector |
J1 |
|
25-pin parallel port |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Positive horizontal sync polarity |
P1 |
Pins 1 & 2 closed |
|
Negative horizontal sync polarity |
P1 |
Pins 2 & 3 closed |
|
Positive vertical sync polarity |
P2 |
Pins 1 & 2 closed |
|
Negative vertical sync polarity |
P2 |
Pins 2 & 3 closed |
|
MONITER CONFIGURATION SELECTION | ||
|
Setting |
SW1/1 |
SW1/2 |
|
CGA |
Off |
Off |
|
Monochrome |
On |
Off |
|
Scan doubling |
Off |
On |
|
BASE I/O ADRESS SELECTION | ||
|
Setting |
SW1/3 |
SW1/4 |
|
Disabled |
On |
On |
|
LPT 1 (3BCh) |
Off |
On |
|
LPT2 (378h) |
On |
Off |
|
LPT3 (278h) |
Off |
Off |
