Card Type	Video Card
Video Chip Set	Tseng Labs
Maximum Video Memory	1MB VRAM
Video Types Supported	Monochrome, CGA, EGA, Hercules, VGA, SVGA
Highest Resolution Supported	1024 x 768
Data Bus	16-bit ISA

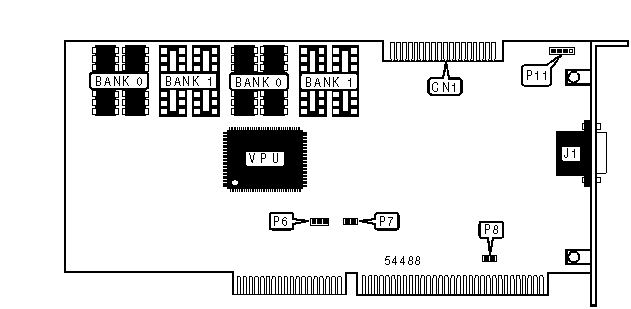

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	J1	Feature connector	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	P6	Unidentified
»	Factory Configured - do not alter	P7	Unidentified

DISPLAY CONFIGURATION
Function		Label	Position
»	Standard Screen	P11	Pins 1 & 2 closed
	Ergonomic Refresh Screen	P11	Pins 2 & 3 closed
	Reserved Refresh Screen	P11	Pins 3 & 4 closed

VIDEO MEMORY CONFIGURATION (VRAM)
Size	Bank0	Bank1
512KB	(4) 256KB	None
1MB	(4) 256KB	(4) 256KB

IRQ SETTINGS
Function	P8
IRQ9 enabled	Closed
IRQ9 disabled	Open
