Category	Video
Video Types Supported	XVGA
Video Processor	TVGA 8900C
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

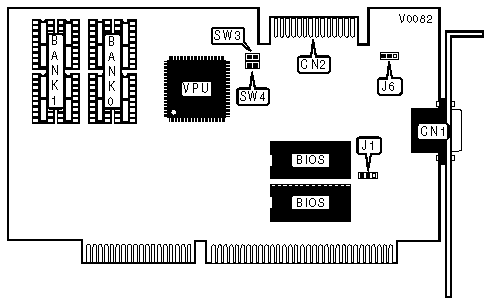

CONNECTIONS
Purpose	Location	Location	Purpose
15-pin analog video port	CN1	VGA feature connector	CN2

VIDEO INTERRUPT SELECTION
IRQ 2/9		J1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

MONITOR DETECTION SELECTION
Setting		J6
»	Standard monitors	Pins 1 & 2 closed
	Non-standard monitors	Pins 2 & 3 closed

SCAN RATE CONFIGURATION
Rate		SW3
»	Default scan rate	Closed
	48.7Khz scan rate	Open

BUS WIDTH AUTODETECT CONFIGURATION
Setting		SW4
»	Enabled	Closed
	Disabled	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 44256	None
512KB	(4) 44256	None
1024KB	(4) 44256	(4) 44256
