UNIDENTIFIED
AV116 SUPER VGA ADAPTER
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
ET4000 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1024KB |
|

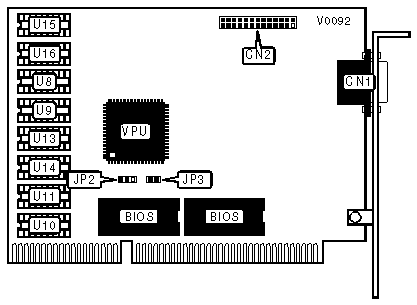

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
VIDEO INTERRUPT SELECTION | ||
|
IRQ 2/9 |
JP2 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
TURBO MODE CONFIGURATION | ||
|
Setting |
JP3 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
DRAM CONFIGURATION | |||
|
Size |
U9, U10 |
U8, U10 |
U13, U14, U15, U16 |
|
256KB |
(2) 44256 |
None |
None |
|
512KB |
(2) 44256 |
(2) 44256 |
None |
|
1024KB |
(2) 44256 |
(2) 44256 |
(4) 44256 |
